Liquids Filling Machine With Mechanical Robot F/L/ 260

Made of stainless steel 316 for the surface with direct contact with food -50 liter Vessel and cover along with other parts that are in direct contact with food is made of 316L stainless steel.
-Product feeding to 50 Liter vessel is done automatically via sentry pump .
-Product type : Milk , fermented yogurt , Aryan drinkable yogurt
-working Liner steps filling

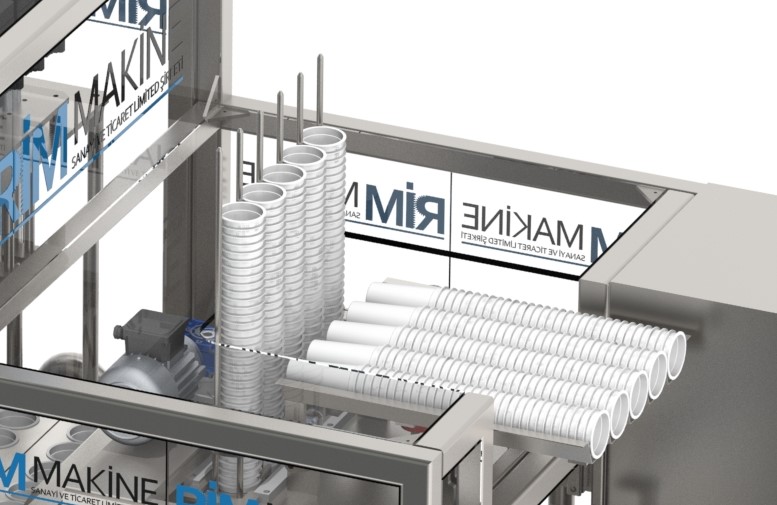

1. machine takes empty container
2. UV light for sterilization of the empty cups.
3. product fill inside container
4. aluminum covers sealing
5. Final products via Exit Conveyor.
6. cups upper diameter 75 mm,
7. cups volume up to 200-250 ml , Square plastic cup
8. 5 piston Fillers .

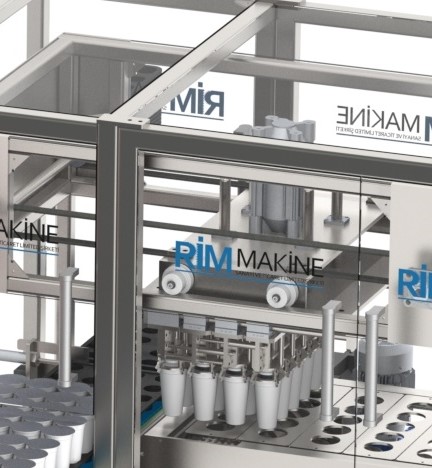

The machine equipped by a mechanical robot that takes 20 cups and assorting them in a carton
-There are safety sensors to check the existence of plastic container.
-PLC control system with touch screen..
-Working capacity depending on 3000-4000 piece/hour
-Power: 3 PH x 380V – 50Hz
-Motor type : Turkish made motor
-Pneumatic parts: EURO/Taiwan \Turkey
-Electrical parts are EURO, Turkey made
