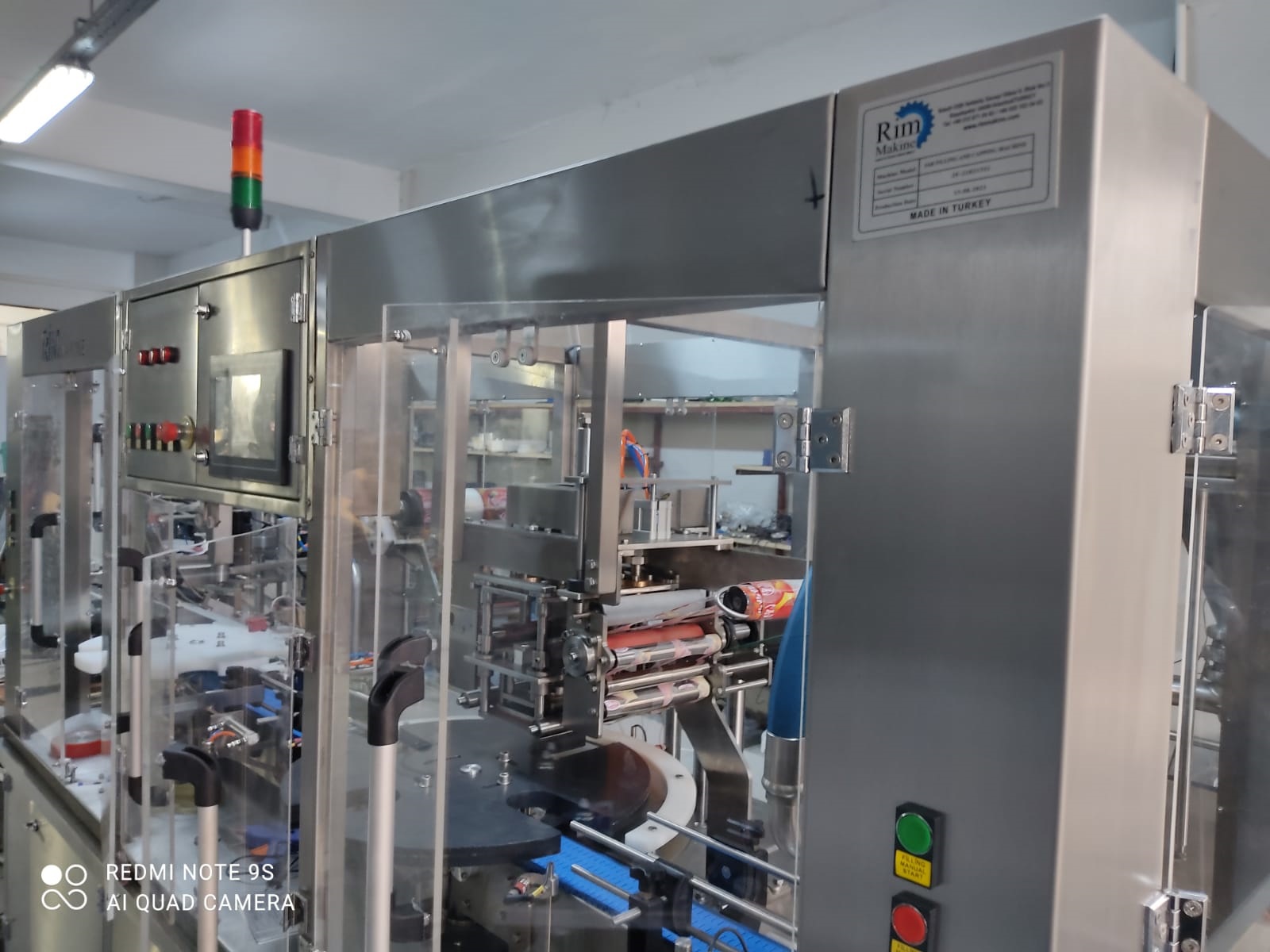

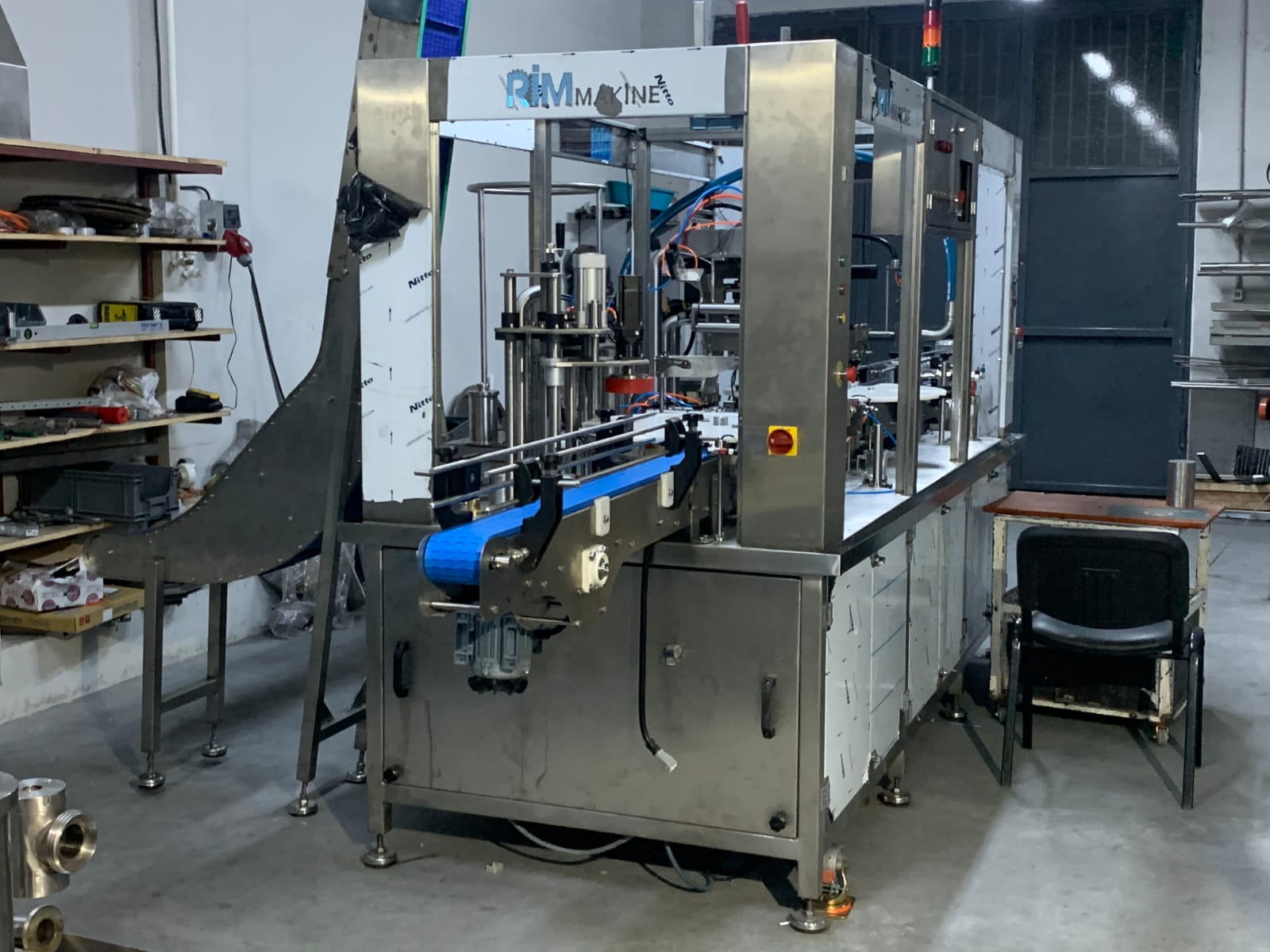

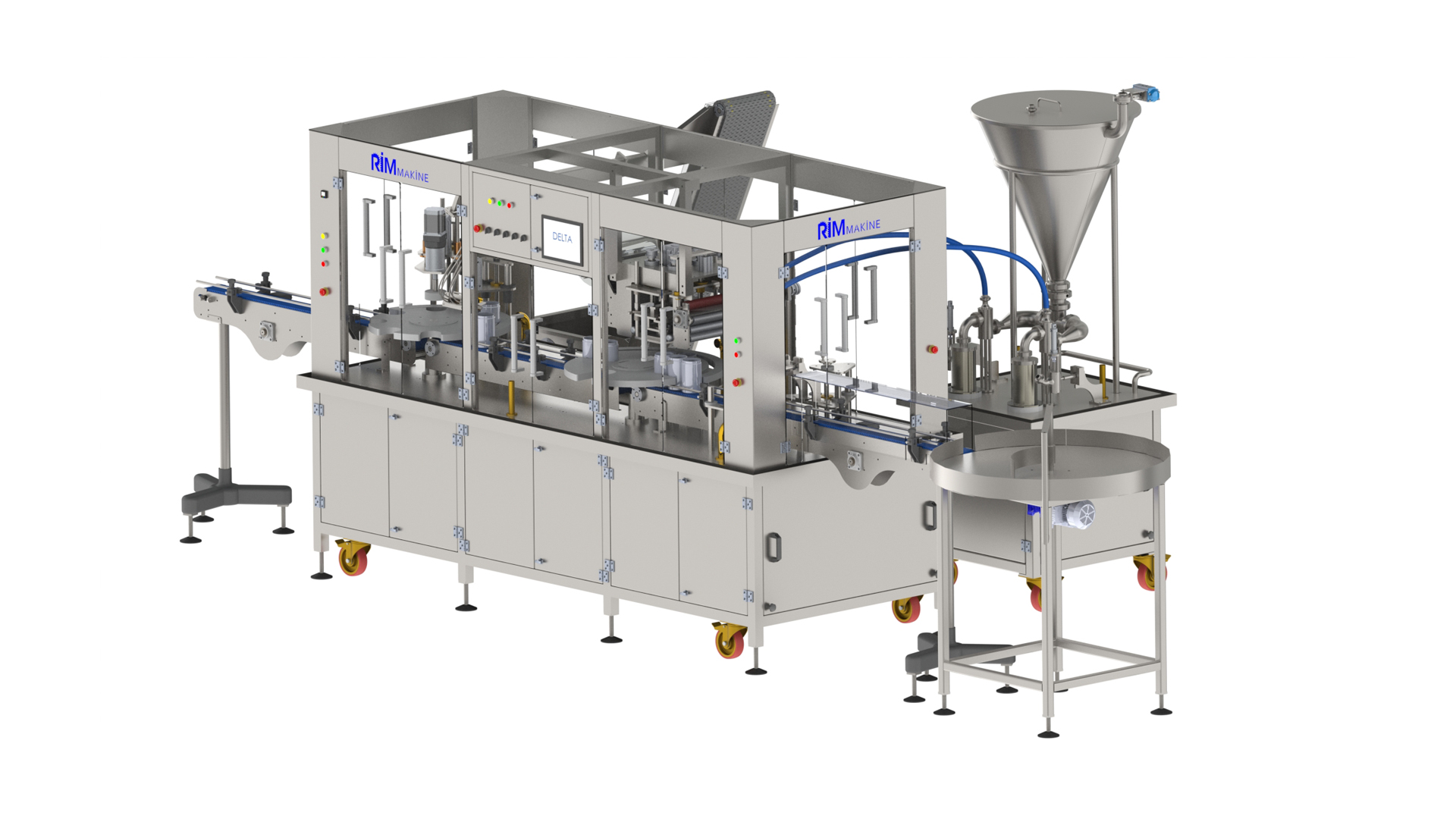

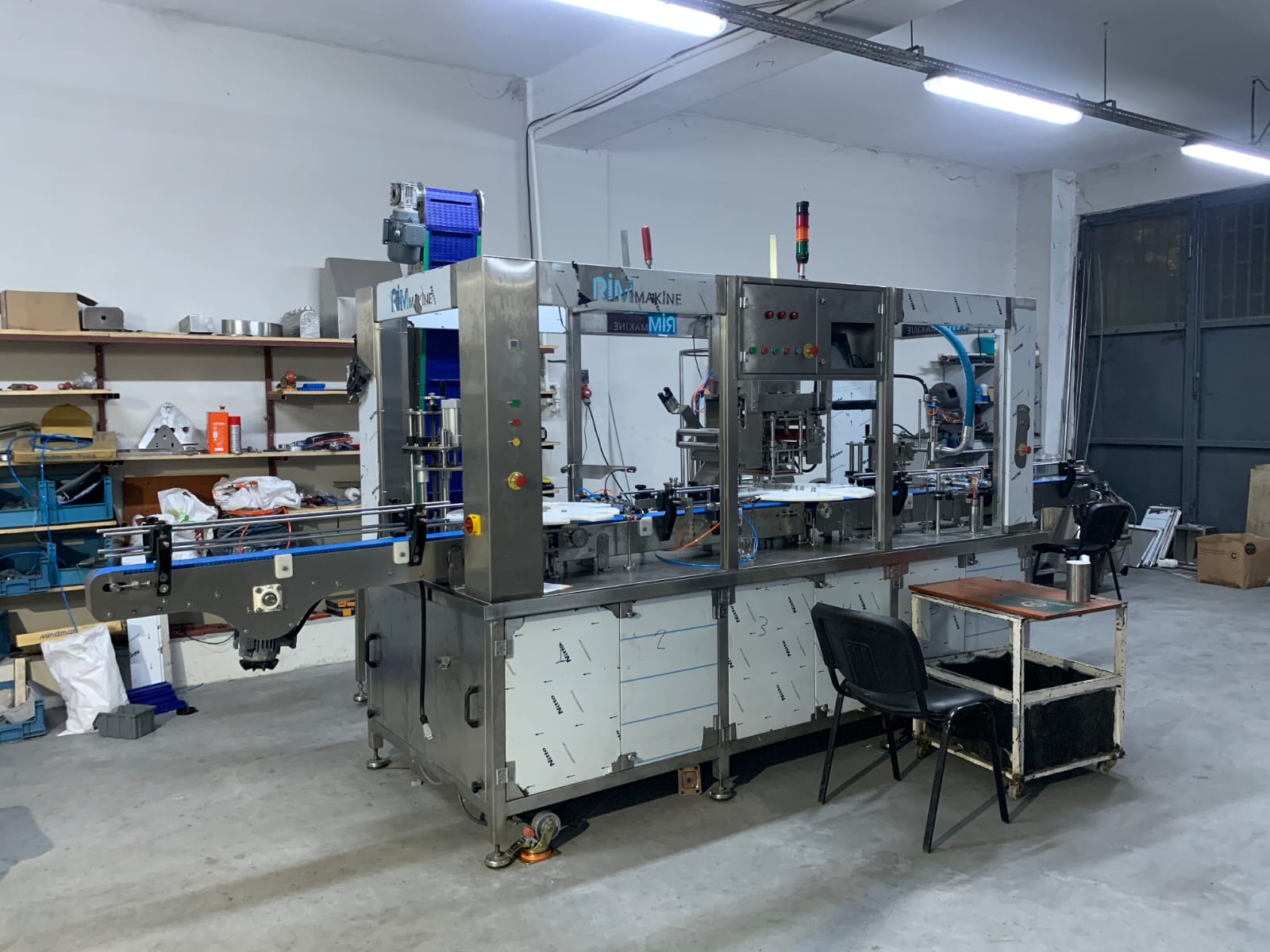

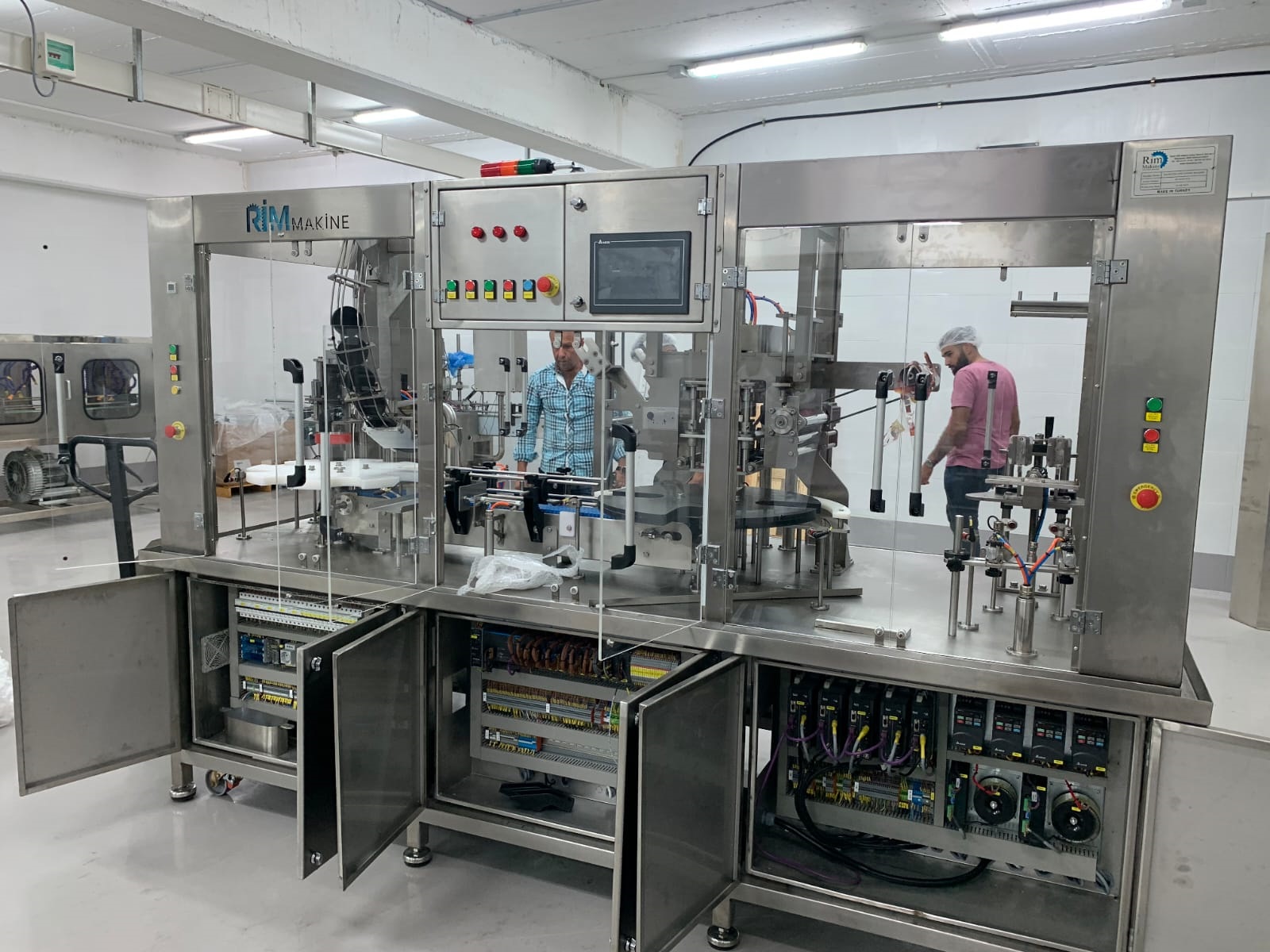

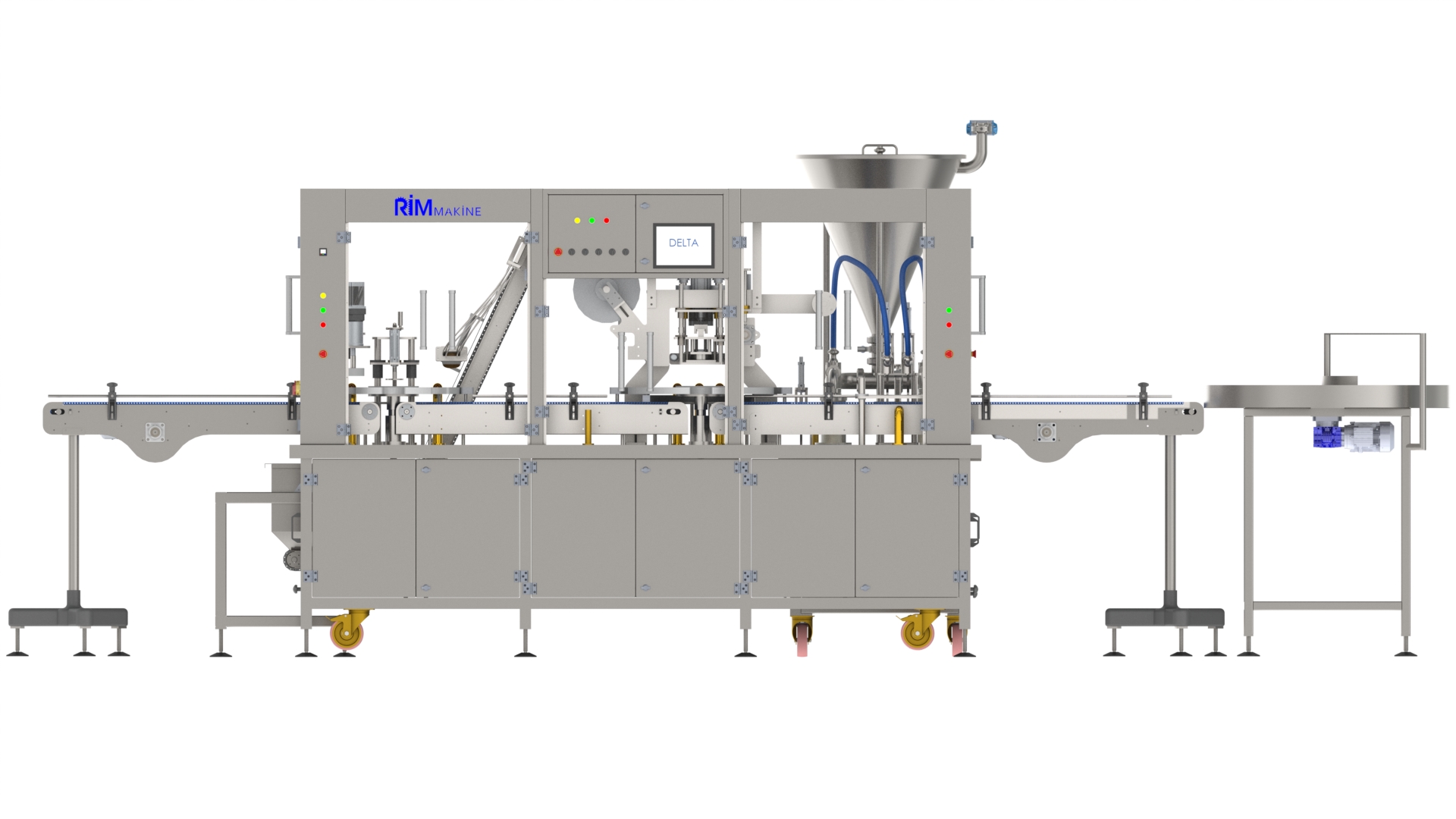

Tehena Filling Machine F/L/200

Tehena machine
Machine is heavy duty industrial machine, sanitary design, for. filling liquids The machine uses for filling Tehena in plastic cups Made of stainless steel 304
-Surface with direct contact with food made from stainless steel 316
-sealing of plastic cups
Production capacity 1200- 1500 pieces /hour
Product type : Tehena
-manual container’s feeding via conveyer

working steps
1. manual packages placed on the conveyor
2. Filling the product into the packages by a servo motor
3. sealing of a polylaed on top of plastic package
4.finial packages get from filling unite
5. machine placed plastic cover on package top
6. Servo motor screw the plastic cove and tight it ell
7. finial filled package exit via conveyer to rotating table

• flexi cabin for the machine
• Adjustable filling nozzles high , filling process , screw tighten could be manually adjusted according to cups high
• Cups r open diameter according customer needs
• Servo motor table rotation
• There are safety sensors to check the existence of plastic container
• PLC control system with touch screen inches DELTA
• Technical data :
Power: 3 PH x 380V – 50Hz
Conveyer motor 0.55- 0.75 HP

-Electricity consumption 2 Kw
-All electric parts are Europe/ Turkish made
-All pneumatic parts are Europe/Turkish/Taiwan
– Electrical parts are EURO, Turkey made
-Servo Motor: DELTA
Ability to build up an external fling unite that works via servo motor or piston filler based on customer demand
