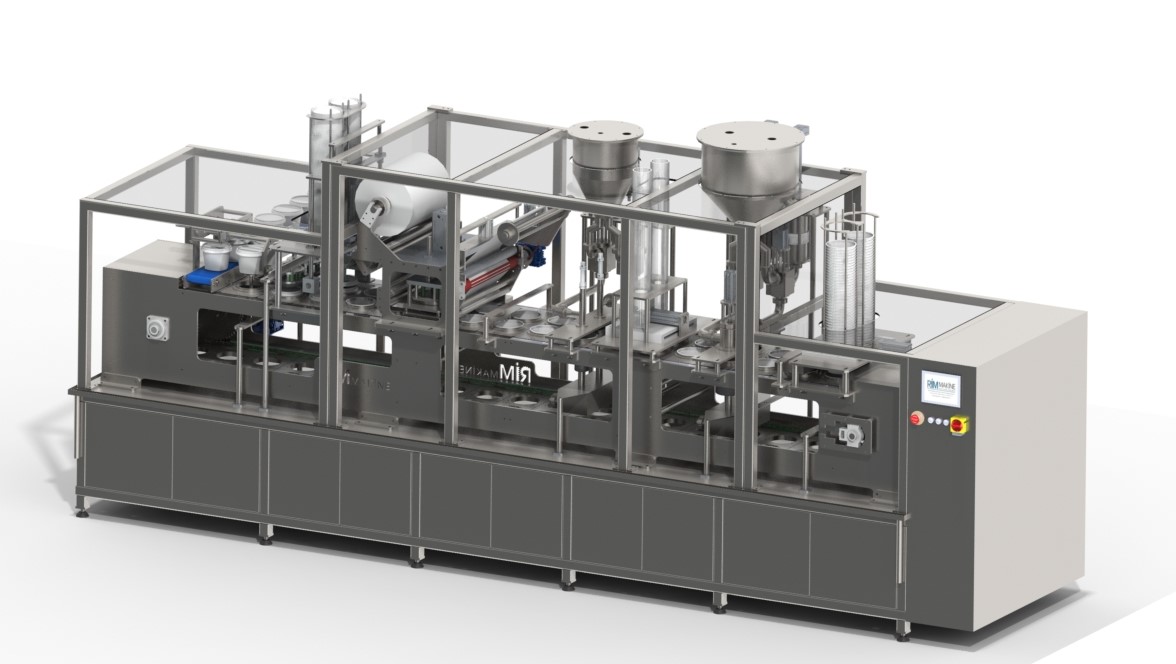

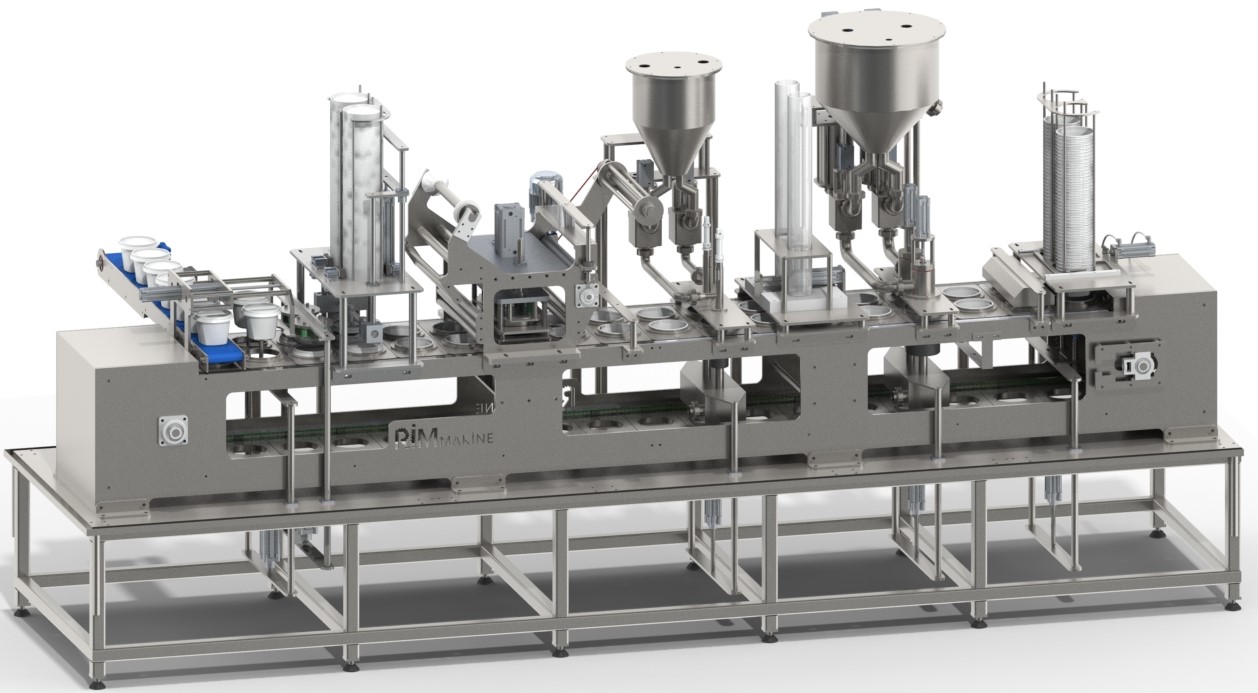

Two Stages Salads Filling Machine F/L/ 230

Made of stainless steel 316 for the surface with direct contact with food -50 liter Vessel and cover along with other parts that are in direct contact with food is made of 316L stainless steel.
-Product feeding to 50 Liter vessel is done automatically via sentry pump .
-Product type : Labaneh , margarine , Hommus, soft cheese .
– working Liner steps filling
Stage one
ï machine takes empty container
ï UV light for sterilization of the empty cups.
ï product fill inside container .
Stage two
ï oil , sauce addition on sleds top 20-40gm
ï plyled /aluminum covers sealing
ï but PVC cover on cup top
ï Final products via Exit Conveyor.
-container volume up to 150-500 gm , round plastic cup
-Plastic cup top diameter 117 mm, 146 mm
-piston Fillers for salads and 2 piston fillers for oil and sauce .
-There are safety sensors to check the existence of plastic container.
-PLC control system with touch screen..
-Working capacity depending on 1000-1200 piece/hour
-Power: 3 PH x 380V – 50Hz
-Motor type : Turkish made motor
-Pneumatic parts: EURO/Taiwan / Turkey made .
-Electrical parts are EURO, Turkey made
